Hill Technical sales offers high quality industrial resistors for any application. Our family of non-inductive ceramic resistor products spans a wide range, from the tiny RT type all the way to our Multi-megajoule custom assemblies.

Be sure to check out our new LRW series premium quality cement cased wirewound and film resistors which replace many popular types.

img2.gif U series low-cost, epoxy-coated, radial lead resistors are designed for surge limiting , capacitor charging, and pulse shaping applications in power electronics equipment such as motor drives and UPS.
img3.gif RT series axial lead resistors are designed to replace old or obsolete multi-watt carbon composition resistors for non inductive surge and impulse applications.

img4.gif C series epoxy coated, radial lead resistors can absorb high energy at voltages up to 44kV. They are ideal for high voltage applications requiring non-inductance, as in pulse forming and fast crowbars.
img5.gif LRW series cement cased wirewound and metal oxide film resistors range from 5 watts to 40 watts in standard and non inductive types. Styles are available for board or chassis mounting.

High Energy Disk ceramic resistors meet the requirements for highest energy, to 110 kjoules, multi-kiloamp current, and high voltage. Disk resistors can be heat sink mounted for high average power. Hvr2.jpg

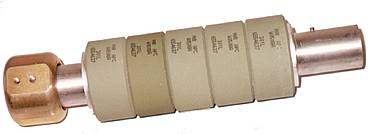

RES2b.jpg Custom assemblies integrate multiple ceramic resistor elements to meet especially demanding requirements flexibly and economically.
Rod and Tube style ceramic resistors are used in circuits requiring  high voltage and non-inductance with surge energy. Select for higher average power, such as R.F. combiners, De-Qing, and dummy loads. RES3b.jpg
